Touch Screens
Technical Information
Model
Unify I01-13A 115"
Description
The largest and most premium 144 Hz LED touch screen on the market, with unmatched image quality and construction, features Google EDLA certification, integrated microcomputer with up to an i7 13700T and an Nvidia RTX 3060 graphics card, speakers, subwoofer and Screen Sharing software.
Screen
115 inches
4K (3840 x 2160)
144Hz Refresh Rate
MiniLed Chip
Quantum dot light control partitioned to more than 20,000 levels
16:9 Aspect ratio
1.07B(8bit+FRC) local dimming
800 ±50 Nits
7,000:1 Contrast
178° viewing angle
Anti-Reflective
98% color gamut
4mm tempered glass anti-bacterial protection
4K (3840 x 2160)
144Hz Refresh Rate
MiniLed Chip
Quantum dot light control partitioned to more than 20,000 levels
16:9 Aspect ratio
1.07B(8bit+FRC) local dimming
800 ±50 Nits
7,000:1 Contrast
178° viewing angle
Anti-Reflective
98% color gamut
4mm tempered glass anti-bacterial protection
Operating Systems
Windows 11
Android 13
Android 13
Processors
Intel® Core™ i7-13 Gen
ARM Mali-G610 MC4
(Both processors work simultaneously)
ARM Mali-G610 MC4
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
5xUSB 3.0
2xTYPE-C IN
1xTYPE-C OUT
4xHDMI IN
1xHDMI OUT
1xDP IN
1xDP
1xMIC
1xEARPHONE OUT
1xSPDIF OUT
1xRS232
2xRJ45
1xTF
2xUSB3.0 TOUCH
WIFI y Bluetooth
2xTYPE-C IN
1xTYPE-C OUT
4xHDMI IN
1xHDMI OUT
1xDP IN
1xDP
1xMIC
1xEARPHONE OUT
1xSPDIF OUT
1xRS232
2xRJ45
1xTF
2xUSB3.0 TOUCH
WIFI y Bluetooth
Sound System
2 Front 20W speakers and 1 20W subwoofer
Camera and Microphone
Integrated 48MP camera and 8 front microphones
Touch
50-point simultaneous touch system, 5ms response speed
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤1000 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Dimensions and Weight
Height: 5.05ft
Width: 8.66ft
Thickness: 2.03ft
Weight: 329 lbs
Width: 8.66ft
Thickness: 2.03ft
Weight: 329 lbs
Environmental Requirements
Operating Temperature: 0 ℃ ~ 60 ℃
Languages
English (United States), Spanish (Mexico) and Italian
Warranty
3-year warranty on manufacturing defects and software (Extendable)
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Security
Trusted Platform Module (TPM) 2.0
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Model
Unify I01-12A 110"
Description
Our second largest touch LED screen, with speakers, subwoofer and Screen Sharing software, generating an immersive and unique experience for users.
Screen
110 inches
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect Ratio
400 Nits
Contrast of 4,000:1
178° viewing angle
Anti-reflective
Protection of 4mm with tempered glass
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect Ratio
400 Nits
Contrast of 4,000:1
178° viewing angle
Anti-reflective
Protection of 4mm with tempered glass
Operating Systems
Windows 11
Android 13
Android 13
Processors
Intel® Core™ i7-13 Gen
RK3588
(Both processors work simultaneously)
RK3588
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
4xUSB 3.0
1xUSB 2.0
1xTYPE-C IN
1xTYPE-C OUT
2xHDMI IN
1xHDMI OUT
1xDP IN
1xCoaxia OUT
1xAudio Mini Line OUT
1xRS232
2x1 Gigabyte RJ45
WIFI y Bluetooth
1xUSB 2.0
1xTYPE-C IN
1xTYPE-C OUT
2xHDMI IN
1xHDMI OUT
1xDP IN
1xCoaxia OUT
1xAudio Mini Line OUT
1xRS232
2x1 Gigabyte RJ45
WIFI y Bluetooth
Sound System
2 Front 15W speakers and 1 15W subwoofer
Camera and Microphone
Integrated camera with Sony IMX258 sensor and 6 front microphones
Touch
20-point simultaneous touch system, 7ms response speed
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤850 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Dimensions and Weight
Height: 4.72ft
Width: 8.26ft
Thickness: 0.17ft
Weight: 302 lbs
Width: 8.26ft
Thickness: 0.17ft
Weight: 302 lbs
Languages
English (United States), Spanish (Mexico) and Italian
Environmental Requirements
Operating Temperature: 0 ℃ ~ 40 ℃
Warranty
3-year warranty on manufacturing defects and software (Extendable)
Security
Trusted Platform Module (TPM) 2.0
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Model
Unify I01-11A 98"
Description
The largest and most premium 144 Hz LED touch screen on the market, with unmatched image quality and construction, features Google EDLA certification, integrated microcomputer with up to an i7 13700T and an Nvidia RTX 3060 graphics card, speakers, subwoofer and Screen Sharing software.
Screen
98 inches
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect ratio
320 Nits
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
1.07B(10 bits) Colors
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect ratio
320 Nits
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
1.07B(10 bits) Colors
Operating Systems
Windows 11
Android 13
Android 13
Processors
Intel® Core™ i7-13 Gen
RK3588
(Both processors work simultaneously)
RK3588
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
5xUSB 3.0
1xUSB 2.0
2xType-C 65W
1xType-C OUT
4xHDMI IN
1xHDMI OUT
1xDP IN
1xMic In
1xLine OUT
1xSPIDF
1xType-B
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
1xTF
WIFI y Bluetooth
1xUSB 2.0
2xType-C 65W
1xType-C OUT
4xHDMI IN
1xHDMI OUT
1xDP IN
1xMic In
1xLine OUT
1xSPIDF
1xType-B
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
1xTF
WIFI y Bluetooth
Sound System
2 Front 16W speakers and 1 20W subwoofer
Camera and Microphone
Integrated camera with Sony IMX258 sensor and 6 front microphones
Touch
40-point simultaneous touch system, 7ms response speed
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤658 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Dimensions and Weight
Height: 4.43ft
Width: 7.31ft
Thickness: 0.36ft
Weight: 203 lbs
Width: 7.31ft
Thickness: 0.36ft
Weight: 203 lbs
Languages
Spanish (Mexico) and English (United States)
Environmental Requirements
Operating Temperature: 0 ℃ ~ 60 ℃
Warranty
3-year warranty on manufacturing defects and software (Extendable)
Security
Trusted Platform Module (TPM) 2.0
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Shared rapid response line at the time of equipment installation
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Model
Unify I01-10A 86"
Description
The largest and most premium 144 Hz LED touch screen on the market, with unmatched image quality and construction, features Google EDLA certification, integrated microcomputer with up to an i7 13700T and an Nvidia RTX 3060 graphics card, speakers, subwoofer and Screen Sharing software.
Screen
86 inches
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect ratio
350 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
4K (3840 x 2160)
60Hz Refresh Rate
16:9 Aspect ratio
350 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
Operating Systems
Windows 11
Android 14
Android 14
Processors
Intel® Core™ i7-13 Gen
GOKE 6780 or mT8195
(Both processors work simultaneously)
GOKE 6780 or mT8195
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
2xUSB 3.0
2xUSB 2.0
1xType-C
2xUSB Type-B
3xHDMI IN
1xHDMI OUT
1xMic In
1xLine OUT
1xCoax
1xType-B
1xRS232
1xRJ45 In
1xTF
WIFI y Bluetooth
2xUSB 2.0
1xType-C
2xUSB Type-B
3xHDMI IN
1xHDMI OUT
1xMic In
1xLine OUT
1xCoax
1xType-B
1xRS232
1xRJ45 In
1xTF
WIFI y Bluetooth
Sound System
2 Front 20W speakers
Camera and Microphone
Optional integrated camera
Touch
40-point simultaneous touch system
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤598 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Dimensions and Weight
Height: 3.64ft
Width: 6.39ft
Thickness: 0.29ft
Weight: 148 lbs
Width: 6.39ft
Thickness: 0.29ft
Weight: 148 lbs
Languages
Spanish (Mexico) and English (United States)
Environmental Requirements
Operating Temperature: 0 ℃ ~ 60 ℃
Warranty
3-year warranty on manufacturing defects and software (Extendable)
Security
Trusted Platform Module (TPM) 2.0
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Model

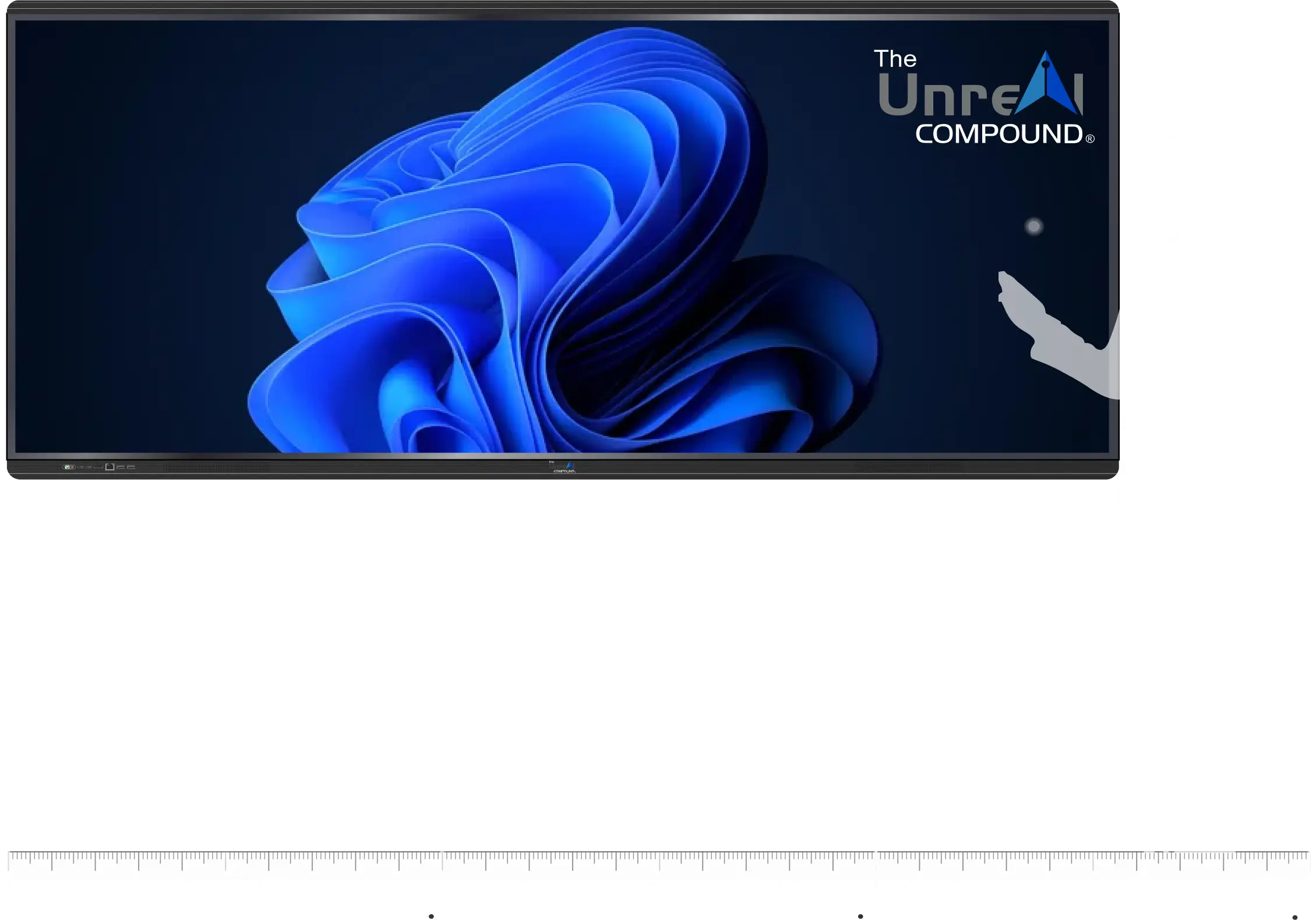

Unify modelo: I01-10P 105"
Description
105" UltraWide Panoramic touch screen with the best specifications on the market.
Unique in its type for meeting rooms and cutting-edge classrooms
Unique in its type for meeting rooms and cutting-edge classrooms
Screen
105 inches
5K (5120 X 2160)
60Hz Refresh Rate
21:9 Aspect ratio
450 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
5K (5120 X 2160)
60Hz Refresh Rate
21:9 Aspect ratio
450 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
Operating Systems
Windows 11
Android 13
Android 13
Processors
Intel® Core™ i7-13 Gen
RK35889
(Both processors work simultaneously)
RK35889
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
6xUSB 3.0
1xUSB 2.0
2xType-C In
1xDP IN 5k60hz HDCP 2.3
1xHDMI IN 5k60hz
3xHDMI IN 4k60hz HDCP 2.3
1xHDMI OUT 4k60hz
1xMic In
1xLine OUT
1xSPDIF
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
2xTouch 2.0
WIFI y Bluetooth
1xUSB 2.0
2xType-C In
1xDP IN 5k60hz HDCP 2.3
1xHDMI IN 5k60hz
3xHDMI IN 4k60hz HDCP 2.3
1xHDMI OUT 4k60hz
1xMic In
1xLine OUT
1xSPDIF
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
2xTouch 2.0
WIFI y Bluetooth
Sound System
2 Front 16W speakers and 1 15W subwoofer
Camera and Microphone
Integrated camera and 8 front microphones
Touch
50-point touch system
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤410 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal 6.5A
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal 6.5A
Dimensions and Weight
Height: 3.64ft
Width: 8.20ft
Thickness: 0.33ft
Weight: 201 lbs
Width: 8.20ft
Thickness: 0.33ft
Weight: 201 lbs
Languages
Spanish (Mexico) and English (United States)
Environmental Requirements
Operating Temperature: 0 ℃ ~ 40 ℃
Warranty
3-year warranty on manufacturing defects and software (Extendable)
Security
Trusted Platform Module (TPM) 2.0
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Model
Unify modelo: I01-10A 105"
Description
105-inch UltraWide Panoramic touch screen with the best specifications on the market, unique in its type for meeting rooms and cutting-edge classrooms
Screen
105 inches
5K (5120 x 2160)
60Hz Refresh Rate
21:9 Aspect ratio
450 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
5K (5120 x 2160)
60Hz Refresh Rate
21:9 Aspect ratio
450 Nits
1.07B(10 bits) Colors
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
Operating Systems
Windows 11
Android 13
Android 13
Processors
Intel® Core™ i7-13 Gen
RK35889
(Both processors work simultaneously)
RK35889
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics (Nvidia RTX 3060 optional)
Memory
Up to 32GB LPDDR4
Storage
Up to 1 TB M.2 SSD
I/O Ports
6xUSB 3.0
1xUSB 2.0
2xType-C In
1xDP IN 5k60hz HDCP 2.3
1xHDMI IN 5k60hz
3xHDMI IN 4k60hz HDCP 2.3
1xHDMI OUT 4k60hz
1xMic In
1xLine OUT
1xSPDIF
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
2xTouch 2.0
WIFI y Bluetooth
1xUSB 2.0
2xType-C In
1xDP IN 5k60hz HDCP 2.3
1xHDMI IN 5k60hz
3xHDMI IN 4k60hz HDCP 2.3
1xHDMI OUT 4k60hz
1xMic In
1xLine OUT
1xSPDIF
1xRS232
1x1 Gigabyte RJ45 In
1x1 Gigabyte RJ45 Out
2xTouch 2.0
WIFI y Bluetooth
Sound System
2 Front 16W speakers and 1 15W subwoofer
Camera and Microphone
Integrated camera and 8 front microphones
Touch
50-point touch system
Software
Features our software for wireless screen sharing from any device with BYOM function
Advanced Writing Application
Advanced Writing Application
Power
Power consumption: ≤410 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal 6.5A
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal 6.5A
Dimensions and Weight
Height: 3.64ft
Width: 8.20ft
Thickness: 0.33ft
Weight: 201 lbs
Width: 8.20ft
Thickness: 0.33ft
Weight: 201 lbs
Languages
English (United States), Spanish (Mexico) and Italian
Environmental Requirements
Operating Temperature: 0 ℃ ~ 40 ℃
Warranty
3-year warranty on manufacturing defects and software (Extendable)
Security
Trusted Platform Module (TPM) 2.0
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Items Included in the Box
Power cables
Maintenance tools
Wall mount
Markers
Maintenance tools
Wall mount
Markers
Frequently Asked Questions
Learn about some of the most frequently asked questions about Unify
What is Unify?
What does the warranty include?
Can I use Zoom or Teams with UNIFY?
What Operating System does UNIFY use?
Do you provide training for using UNIFY?
What channel is used to receive Technical Support?
Do you have any questions or need Technical support?
No Commitments
Responses in less than 4 hours
Take the step
